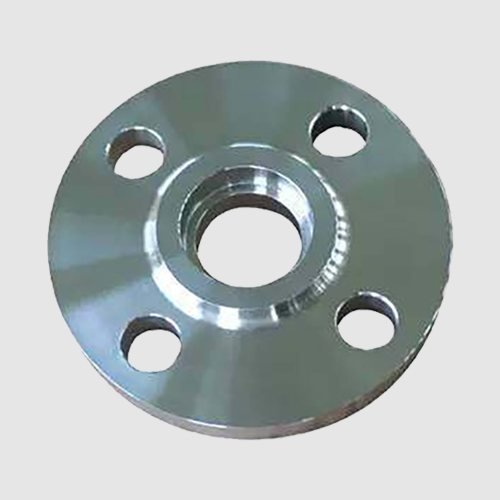

Socketweld Flange

Class

150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc.

Flange Face Type

American Series: Flat Face(FF), Raised Face(RF), Tongue(T), Groove(G), Female(F), Male(M), Ring Joints Face(RJ)
European Series: Type A(Flat Face), Type B(Raised Face), Type C(Tongue), Type D(Groove), Type E(Spigot), Type F(Recess), Type G(O-Ring Spigot), Type H (O-Ring Groove)

Manufacturing Standards

ASME B16.5-2013，EN 1092-1-2007, EN 1759-1-2004，ISO 7005-1-1992，GB/T 9112-2010, GB/T 9114-2010，HG/T 20592-2009, HG/T 20615-2009，SH/T 3406-2013，GOST- AFNOR- BS- DIN

Material

ASTM A 182, A 240 F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H, 904L

ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2, 20#, Q235, 16Mn

ASTM / ASME A 182, ASTM / ASME F5, F9, F11,F22, F 91
